Photoelectric distance sensor
O1D209
O1DLF3KG
Photoelectric distance sensor
O1D209
O1DLF3KG
- Reliable optical distance measurement with background suppression
- Range up to 100 m for use on cranes
- Two switching outputs, one of them programmable as analogue output
- Excellent price/performance ratio
- Wide range of components for quick mounting and precise fine adjustment
Product characteristics
Laser protection class | 2 |
---|---|
Housing | rectangular |
Electrical data
Operating voltage [V] | 18...30 DC; ("supply class 2" to cULus) |
---|---|
Current consumption [mA] | < 150 |
Protection class | III |
Reverse polarity protection | yes |
Typ. lifetime [h] | 50000 |
Inputs / outputs
Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
---|
Outputs
Total number of outputs | 2 |
---|---|
Electrical design | PNP |
Number of digital outputs | 2 |
Output function | normally open / normally closed; (programmable) |
Max. current load per output [mA] | 200 |
Number of analogue outputs | 1 |
Analogue current output [mA] | 4...20; (IEC 61131-2) |
Max. load [Ω] | 250 |
Analogue voltage output [V] | 0...10; (IEC 61131-2) |
Min. load resistance [Ω] | 5000 |
Short-circuit protection | yes |
Type of short-circuit protection | pulsed |
Overload protection | yes |
Detection zone
Max. light spot width [mm] | 200 |
---|---|
Max. light spot height [mm] | 200 |
Light spot dimensions refer to | 100 m |
Background suppression [m] | 100...600 |
Measuring/setting range
Measuring range [m] | 1...100; (Reflector) |
---|---|
Sampling rate [Hz] | 1...25 |
Operating conditions
Ambient temperature [°C] | -10...60 |
---|---|
Protection | IP 67 |
Tests / approvals
EMC |
|
||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Laser protection class | 2 | ||||||||||||||||||||
Notes on laser protection |
|
||||||||||||||||||||
MTTF [years] | 186 |
Mechanical data
Weight [g] | 314 |
---|---|
Housing | rectangular |

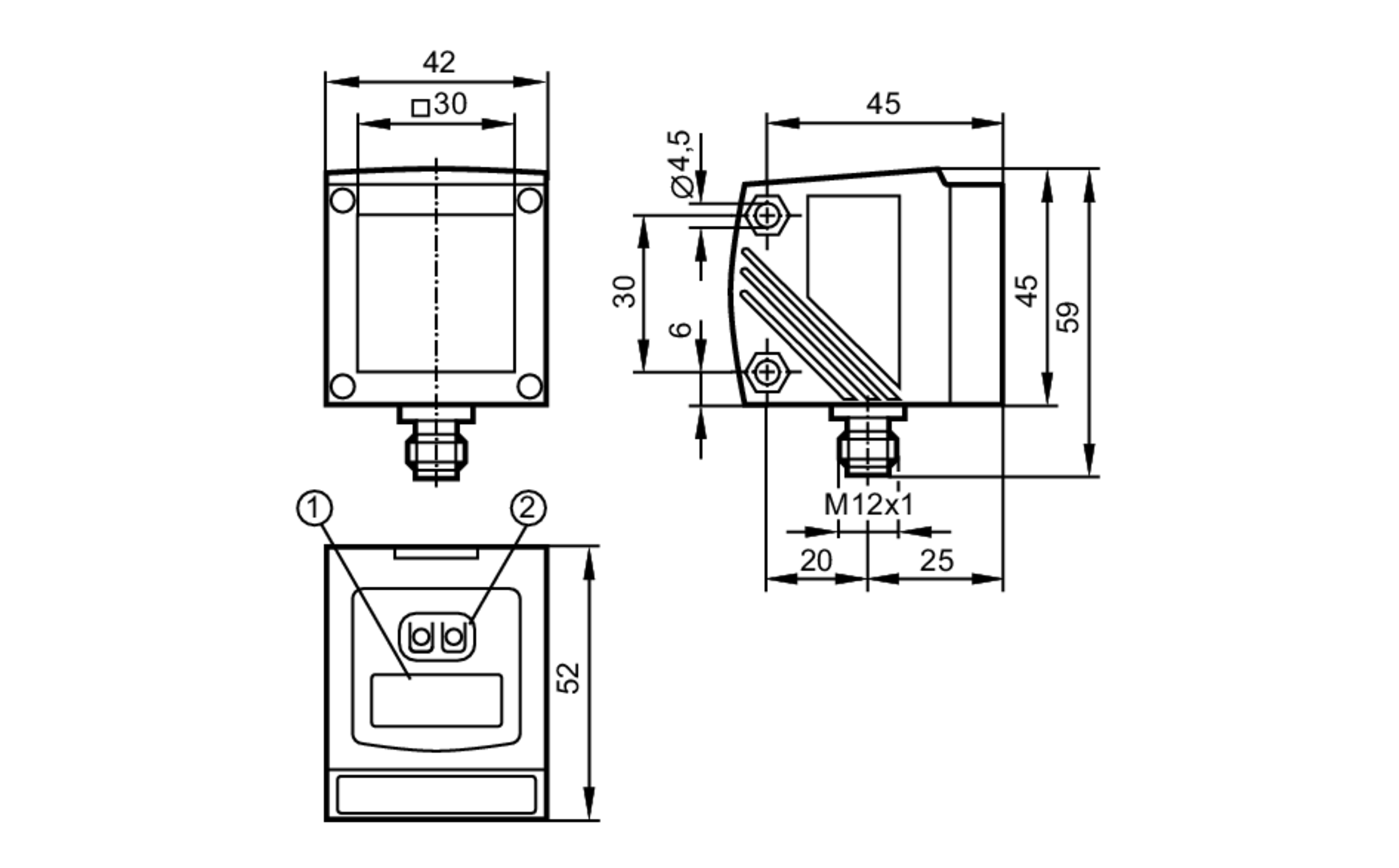

Dimensions [mm] | 59 x 42 x 52 |
Materials | housing: diecast zinc; front pane: glass; LED window: PC |
Lens alignment | side lens |
Displays / operating elements
Display |
|
---|
Remarks
Pack quantity | 1 pcs. |
---|

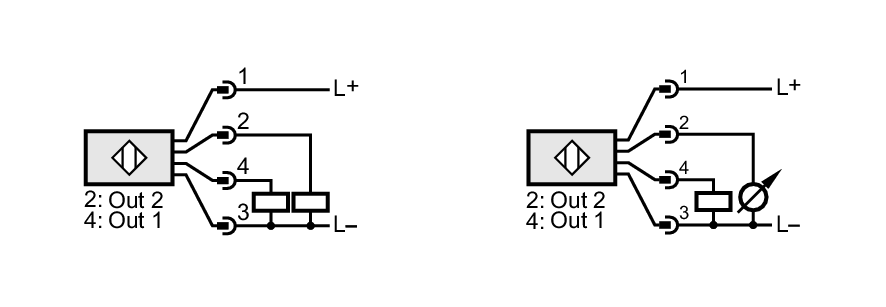

Electrical connection
Connection | Connector: 1 x M12; coding: A |
---|
