- CR3020
Real-time clock for CAN systems
CR3020
R360/MODULE/CANrtc
Real-time clock for CAN systems
CR3020
R360/MODULE/CANrtc
- Compact design in cube relay housing
- High-performance CAN interface for various communication tasks
- Integrated alarm output
- Robust design for use in mobile machines
- Easy integration into the application program with CODESYS function blocks
Electrical data
Operating voltage [V] | 8...32 DC |
---|---|
Current consumption [mA] | < 6 |
Inputs / outputs
Total number of inputs and outputs | 1 |
---|---|
Number of inputs and outputs | Number of digital outputs: 1 |
Outputs
Number of digital outputs | 1 |
---|
Interfaces
Number of CAN interfaces | 1 |
---|
Operating conditions
Storage temperature [°C] | -40...85 |
---|---|
Protection | IP 20 |

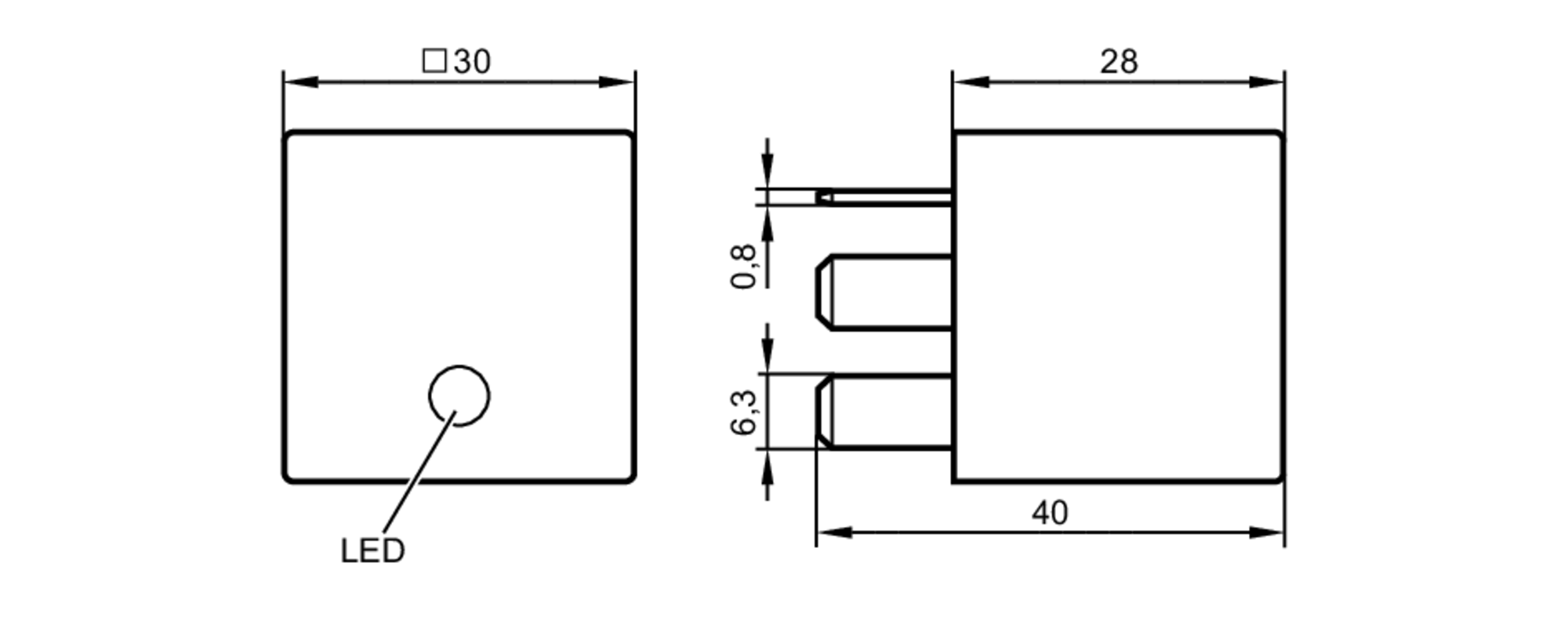

Mechanical data
Weight [g] | 47.9 |
---|---|
Material | housing: plastics |
Remarks
Pack quantity | 1 pcs. |
---|
