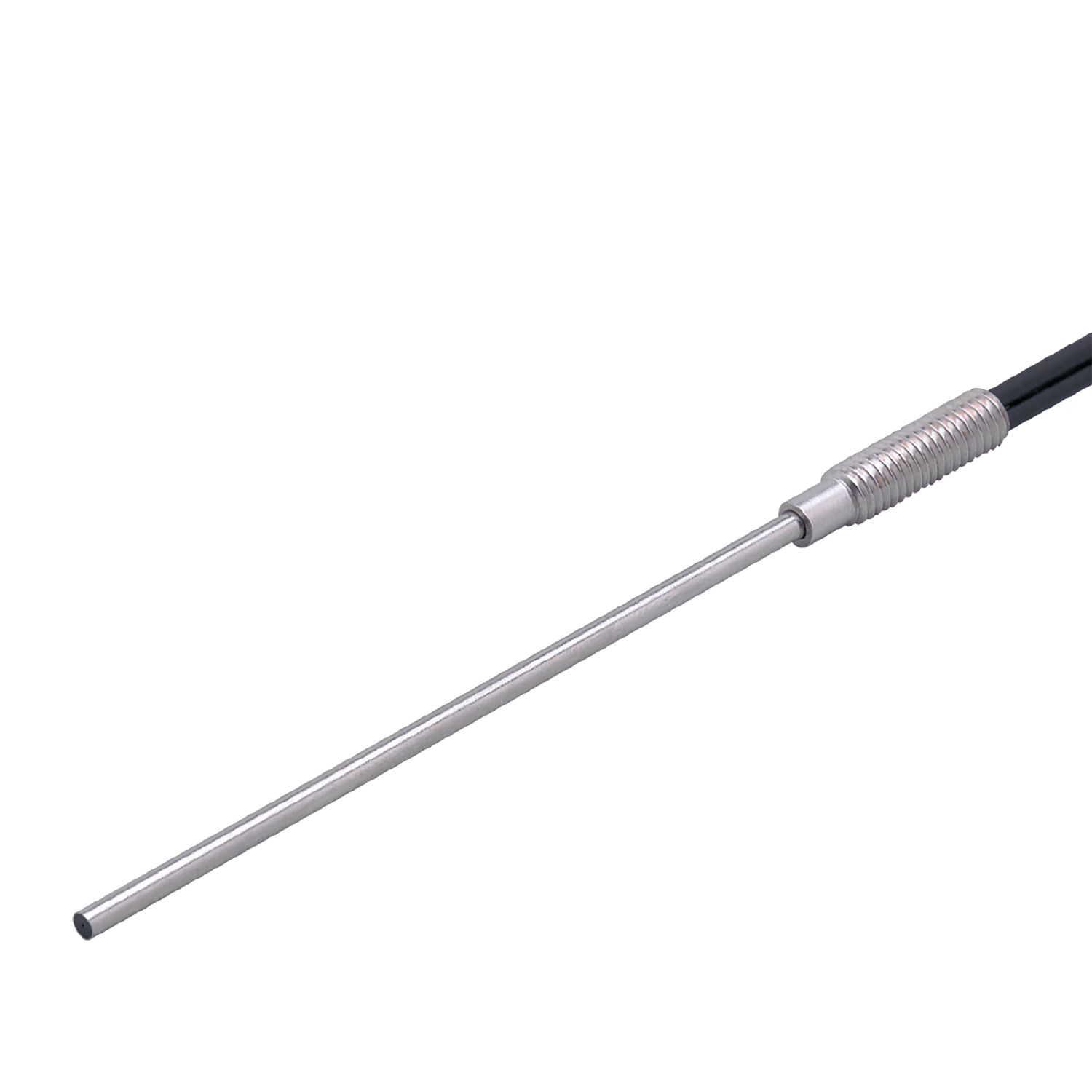

Fiber optic diffuse reflection sensor
E20749
FT-11-EPA-M6/F2x1,0/2M
Fiber optic diffuse reflection sensor
E20749
FT-11-EPA-M6/F2x1,0/2M
- For installation with limited mounting space
- Operation as diffuse reflection sensor
- With bendable sensing head for use where space is limited
- For cutting to size
- Small bending radius
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | For use in industrial environments |
Monitoring range
| Range with fiber optic amplifier type | OB50; OBF; OCF; OO50 |
|---|
| Range fiber optics [mm] | 70 |
|---|
| Range fiber optics [mm] | 100 |
|---|
| Range fiber optics [mm] | 560 |
|---|
| Range fiber optics [mm] | 300 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...70 |
|---|
Mechanical data
| Weight [g] | 49.5 |
|---|---|
| Version of sensing head | bendable |
| Total length [mm] | 2000 |
| Min. bending radius [mm] | 27 |
| Fiber arrangement |
|
| Core diameter [mm] | 2 x 1 |
| Material | threaded sleeve: brass white bronze coated |
| Fiber material | PMMA |
| Fiber head material | stainless steel (1.4301 / 304) |
| Fiber sheath material | PE |
Accessories
| Items supplied |
|
||
|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm efector, inc. • 1100 Atwater Drive • Malvern • PA 19355 — We reserve the right to make technical alterations without prior notice. — EN-US — E20749-00 — 18.08.2022 —
E20749 –
FT-11-EPA-M6/F2x1,0/2M
- 1
- bendable
