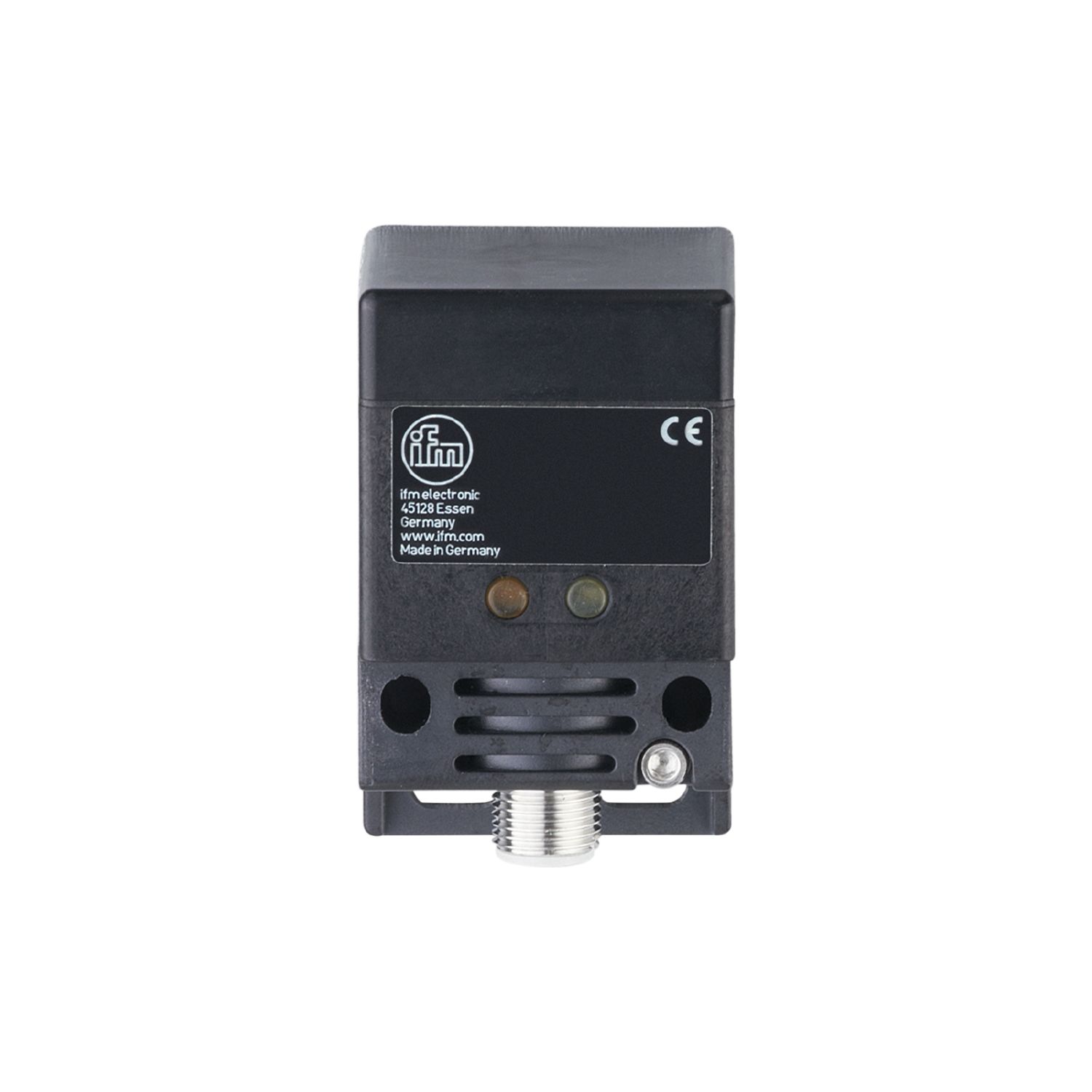

Inductive sensor
IM5098
IMC4035UCPKG/K1/SC/US-100-DPA
Inductive sensor
IM5098
IMC4035UCPKG/K1/SC/US-100-DPA
- Correction factor K=1: Constant sensing range on all metals
- Magnetic-field immune for welding applications
- Weld slag resistant coating
- Complementary output function NO/NC
- Robust housing for use in harsh industrial environments
Article to be discontinued
Alternative articles: IM5124 or IM5126 Product comparison: IM5098 / IM5124 / IM5126 When selecting an alternative article and accessories please note that technical data may differ!
Product characteristics
Electrical design | PNP |
---|---|
Output function | complementary |
Sensing range [mm] | 35 |
Housing | rectangular |
Dimensions [mm] | 40 x 40 x 66 |
Application
System | gold-plated contacts; correction factor = 1; Magnetic-field immune |
---|---|
Magnetic-field immune | yes |
Electrical data
Operating voltage [V] | 10...36 DC |
---|---|
Current consumption [mA] | 20; (24 V) |
Protection class | II |
Reverse polarity protection | yes |
Outputs
Electrical design | PNP |
---|---|
Output function | complementary |
Max. voltage drop switching output DC [V] | 2.5 |
Permanent current rating of switching output DC [mA] | 250 |
Switching frequency DC [Hz] | 250 |
Short-circuit protection | yes |
Type of short-circuit protection | yes (non-latching) |
Overload protection | yes |
Monitoring range
Sensing range [mm] | 35 |
---|---|
Real sensing range Sr [mm] | 35 ± 10 % |
Operating distance [mm] | 0...28.3 |
Accuracy / deviations
Correction factor | steel: 1 / stainless steel: 1 / brass: 1 / aluminum: 1 / copper: 1 |
---|---|
Hysteresis [% of Sr] | 1...15 |
Switch-point drift [% of Sr] | -10...10 |
Correction factor = 1 | yes |
Operating conditions
Ambient temperature [°C] | -25...70 |
---|---|
Protection | IP 67 |
Tests / approvals
EMC |
|
||||||||
---|---|---|---|---|---|---|---|---|---|
MTTF [years] | 943 | ||||||||
UL approval |
|
Mechanical data
Weight [g] | 142 |
---|---|
Housing | rectangular |
Mounting | non-flush mountable |
Dimensions [mm] | 40 x 40 x 66 |
Material | housing: PPE; sensing face: PPE black weld coated; end cap: PPS; clamp: PPS black; screw: steel galvanized |
Displays / operating elements
Display |
|
---|
Accessories
Items supplied |
|
---|
Remarks
Remarks |
|
|
---|---|---|
Pack quantity | 1 pcs. |
Electrical connection - plug
Connection | Connector: 1 x M12; coding: A; Locking: brass, white bronze coated; Contacts: gold-plated |
---|
