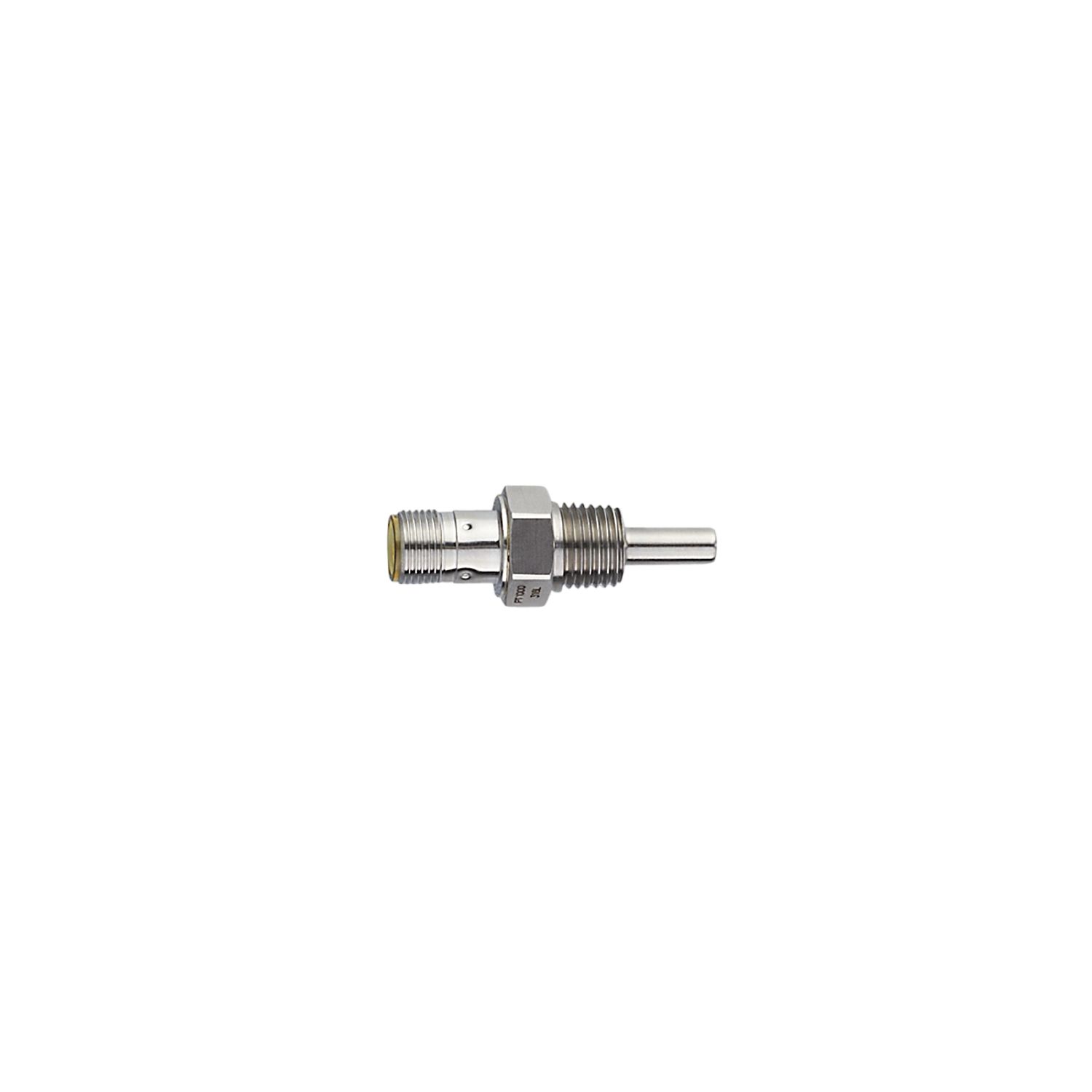

Temperature sensor with process connection
TM5601
TM-025KCBN14- /US/
Temperature sensor with process connection
TM5601
TM-025KCBN14- /US/
- Precise temperature measurement in containers, tanks and pipes
- For the connection to an evaluation unit
- Very short response time for use in processes with fast temperature fluctuations
- Robust stainless steel housing with high protection rating and high pressure resistance
- Variable process connection using adapters
Product characteristics
Measuring range |
|
||
---|---|---|---|
Process connection | threaded connection 1/4" NPT | ||
Installation length EL [mm] | 25 |
Application
System | gold-plated contacts | ||
---|---|---|---|
Measuring element | 1 x Pt 1000; (to DIN EN 60751, class A) | ||
Media | liquids and gases | ||
Pressure rating [bar] | 400 | ||
Note on pressure rating |
|
||
Minimum installation depth [mm] | 15 |
Electrical data
Protection class | III |
---|
Measuring/setting range
Probe length L [mm] | 15 | ||
---|---|---|---|
Measuring range |
|
Accuracy / deviations
Accuracy [K] | ± (0,15 K + 0,002 x|t|) |
---|
Reaction times
Dynamic response T05 / T09 [s] | 1 / 3 |
---|
Operating conditions
Ambient temperature [°C] | -25...80 |
---|---|
Storage temperature [°C] | -40...100 |
Protection | IP 68; IP 69K |
Tests / approvals
Shock resistance |
|
||
---|---|---|---|
Vibration resistance |
|
||
MTTF [years] | 22831 | ||
UL approval |
|
Mechanical data
Weight [g] | 27.2 |
---|---|
Material | stainless steel (1.4404 / 316L) |
Materials (wetted parts) | stainless steel (1.4404 / 316L) |
Process connection | threaded connection 1/4" NPT |
Probe diameter [mm] | 6 |
Installation length EL [mm] | 25 |
Remarks
Remarks |
|
|
---|---|---|
Pack quantity | 1 pcs. |
Electrical connection
Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
---|
