ifm offers two versions of the LDL conductivity sensor family:

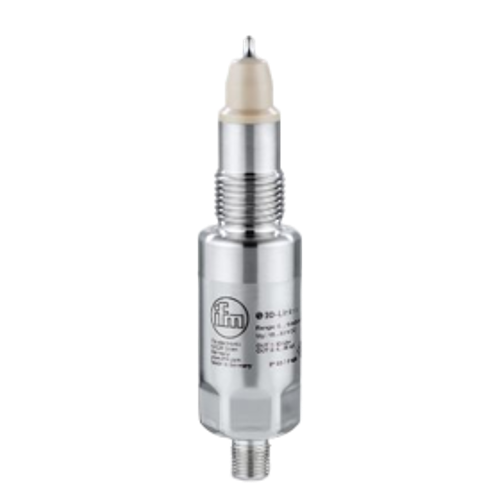

- LDL100 with measuring range of 100....15,000 µS/cm. Media with a conductivity level higher than 15,000 cannot be measured, but the sensor can be used to differentiate them from media within the measuring range.

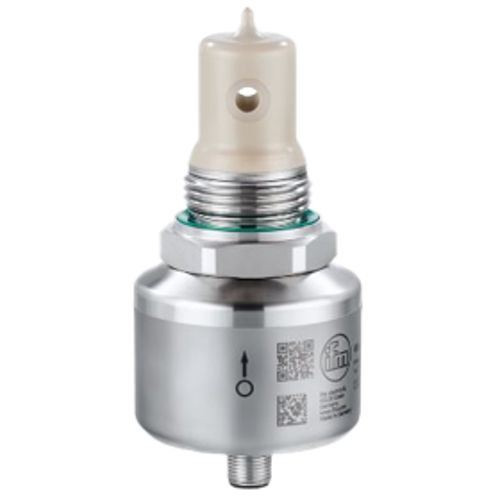

- LDL2xx with measuring range of 100...1,000,000 µS/cm.
Select your products either by the conductivity value of your media or by your application.
Selection by media / conductivity value
Select by application
| Application |  LDL100 |
 LDL200 / LDL210 |
 LDL201 |
|---|---|---|---|
| Media transition measurement (e.g. rinse water / product) |  |
|
|
| Product differentiation / verification | |
|
|
| Leak detection (ex. heat exchangers) | |
|
|
| Water quality (above 100 µS / cm) | |
|
|
| CIP chemical concentration | |
|
|
| Salinity | |
|
|
| Viscous media within the measuring range of both LDL100 and LDL200, select LDL100 to avoid potential clogging of the measuring channel. | |
Learn more about IO-Link benefits for conductivity sensors and how to calibrate your sensor.
