Select Products

	Dimensions	Sensing range	Switching frequency	Points to consider

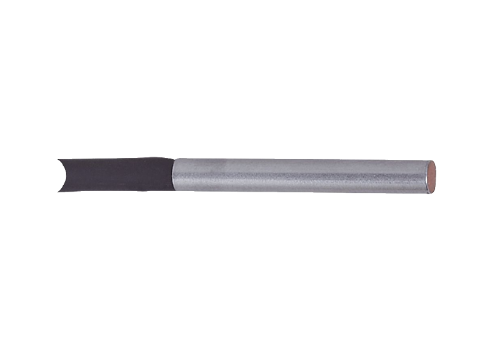

Miniature	• Ø3 • Ø4 • Ø6.5	0.8 mm … 4 mm	Up to 2000 Hz	• Miniature and compact housing • Prewired and quick disconnect versions available

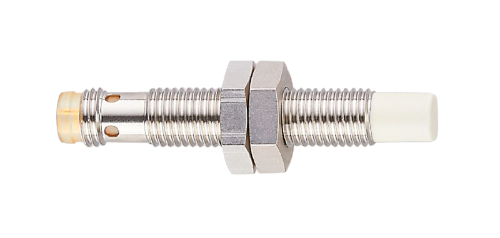

IO-Link sensors	• M8 • 20 x 8 x 32 mm	6...7.5 mm	Up to 600 Hz	• Precise distance measurement • Long sensing range • Easy configuration with moneo software

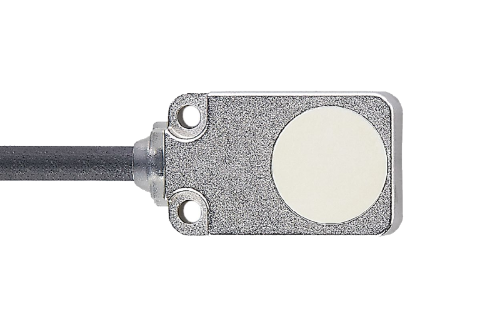

Flat pack	20 x 8 x 32 mm	8 mm	Up to 2000 Hz	• Rectangular design • Flush mountable • IO-Link version available

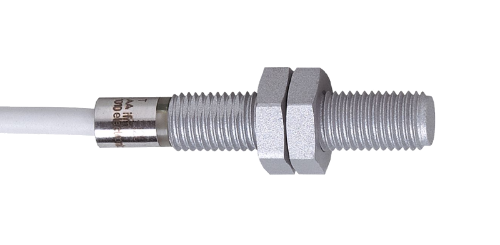

Weld field immune	• M8 • 20 x 8 x 32 mm	2...8 mm	Up to 2000 Hz	• Non-stick weld coated • Resistant to weld slags

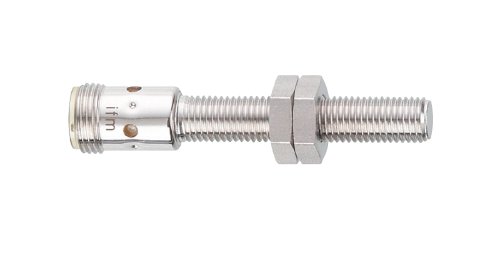

Correction factor K=1	• M8 • M12 • 40 x 40 x 54 mm	1.5... 40 mm	Up to 2000 Hz	• Detects all metals with same sensing range • Easy installation

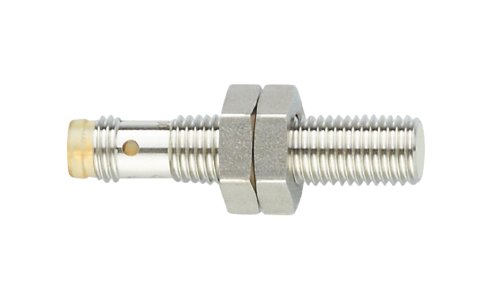

Full metal	M8	2 mm	Up to 150 Hz	• Robust full metal housing • Increased sensing range • High protection rating

For larger inductive proximity sensors, please click here.
