Encoders and inclination sensors
Sensors for mobile machines
Reliable: CAN interface via M12 connector |
Robust: Vibration and shock resistant |
Permitted: E1 type approval by the Kraftfahrt-Bundesamt (German Federal Motor Transport Authority) |
Resistant: Wide temperature range of -40...85°C |
Ingress-resistant: High ingress resistance (IP 67/ IP69K) for the requirements in harsh environmental conditions |

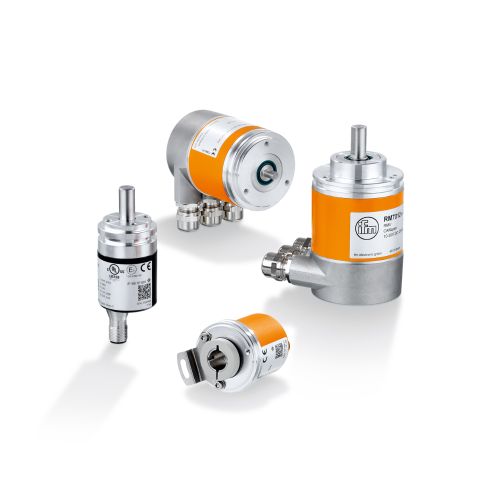

Multiturn encoders – precise detection of positions and rotational movement
The multiturn encoders are used for the detection of rotation or exact position detection for rotary movements. The encoder resolves a revolution into 4096 steps. The gear-free system uses the Wiegand effect to keep the position values stored in case of a power failure without battery buffer. This means that the exact position can be transferred to the controller without any referencing.

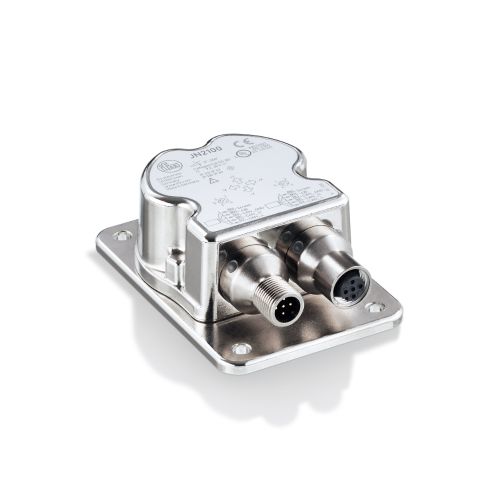

Inclination sensors – high measurement accuracy for angles and positions
Often the horizontal alignment of machines or machine parts is an important requirement for reliable operation. Inclination sensors are designed for angular position detection or levelling of mobile machines. Inclination sensors provide high measurement accuracy across the whole angular and temperature range with angles of inclination along the X and Y axes. They have a CAN interface (CANopen / SAE J1939) or IO-Link.
Sensors for mobile machines | ||
---|---|---|
• Encoders |
To the selector | |
• Static inclination sensors |
To the selector | |
• Dynamic inclination sensors |
To the selector |
