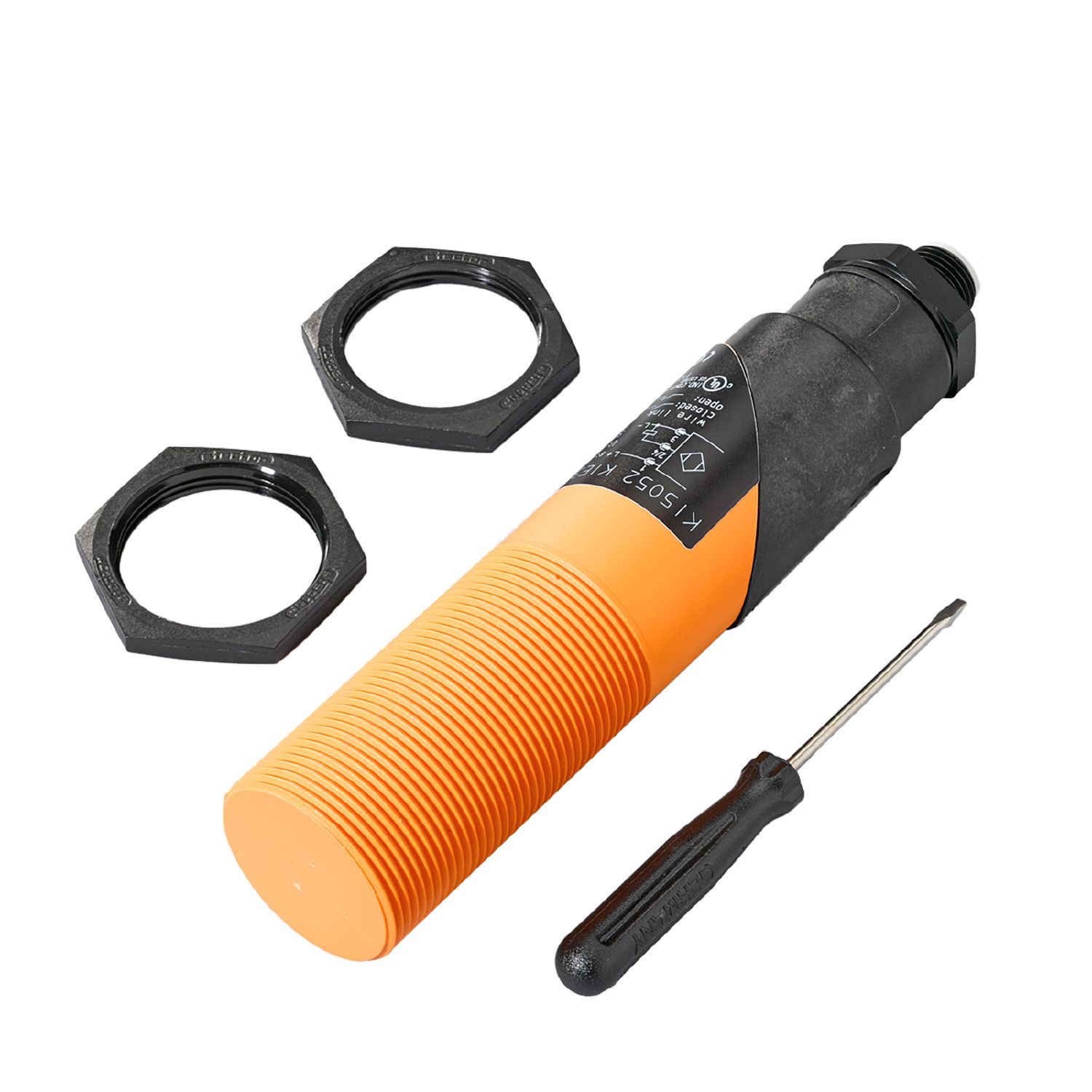

Capacitive sensor
KI5052
KIE3015-FPKG/NI/55V/US-100-DPX
Capacitive sensor
KI5052
KIE3015-FPKG/NI/55V/US-100-DPX
- High noise immunity
- Easy setting of the sensing range via potentiometer
- Clearly visible indication of the switching status
- Output function normally open / normally closed programmable
- With connector that can be rotated by 90°
Product characteristics
Electrical design | PNP |
---|---|
Output function | normally open / closed; (selectable) |
Sensing range [mm] | 15 |
Housing | Threaded type |
Dimensions [mm] | M30 x 1.5 / L = 143 |
Electrical data
Operating voltage [V] | 10...55 DC; (cULus - Class 2 source required) |
---|---|
Current consumption [mA] | 14; (24 V) |
Protection class | II |
Reverse polarity protection | yes |
Outputs
Electrical design | PNP |
---|---|
Output function | normally open / closed; (selectable) |
Max. voltage drop switching output DC [V] | 2.5 |
Permanent current rating of switching output DC [mA] | 250 |
Switching frequency DC [Hz] | 40 |
Short-circuit proof | yes |
Overload protection | yes |
Monitoring range
Sensing range [mm] | 15 |
---|
Operating conditions
Ambient temperature [°C] | -25...70 |
---|---|
Protection | IP 65 |
Increased immunity | yes; (Increased immunity to conducted radio frequency interference) |
Tests / approvals
EMC |
|
||
---|---|---|---|
MTTF [years] | 743 |
Mechanical data
Weight [g] | 146 |
---|---|
Housing | Threaded type |
Mounting | non-flush mountable |
Dimensions [mm] | M30 x 1.5 / L = 143 |
Thread designation | M30 x 1.5 |
Material | PBT; end cap: PC |
Displays / operating elements
Display |
|
---|
Accessories
Items supplied |
|
---|
Remarks
Pack quantity | 1 pcs. |
---|
Electrical connection - plug
Connection | Connector: 1 x M12; coding: A |
---|
